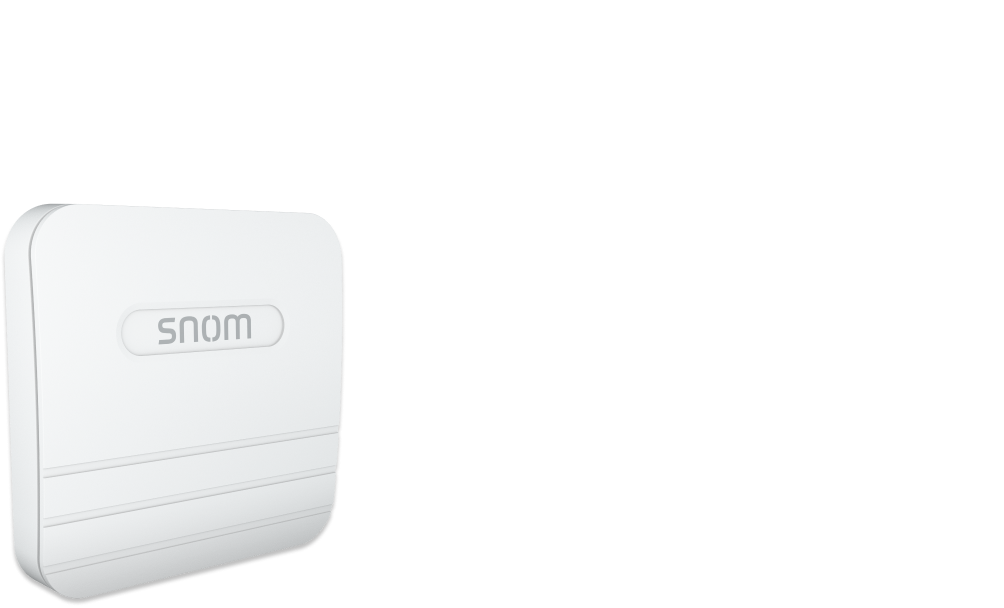

Snom M9B Beacon Gateway

Snom M9B

Beacon Gateway

Key features

Bluetooth LE support
4 antennas for beamforming
Compatible with Snom M70, M80, M85, M90 handsets
compatible with: iBeacon, AltBeacon & Eddystone

Technical details >

Documentation >

Purchase options >

Professional live location, asset tracking and alarm solutions

With the Snom Beacon Solution, Snom offers a cost-effective and contemporary solution to integrate professional location and asset tracking and alarm systems** into any existing Snom DECT multi-cell system*.

The Snom M9B Beacon Gateway works as a Bluetooth satellite that is connected to a Snom M900 base via a DECT data connection. The beacon gateway itself can either transmit Bluetooth signals continuously (TX) to scan registered devices in its vicinity or react in receive mode (RX) to signals from approaching beacons. The 4 antennas integrated in the M9B enable precise live location of a registered device thanks to beamforming in the near field range of 1-15 metres and report this information in real time to the nearest Snom M900 base. At the same time, the M9B is compatible with many Bluetooth beacons from well-known manufacturers such as iBeacon, AltBeacon or Eddystome.

The Snom M9B Beacon Gateway can be operated by battery as well as by USB power adapter and is therefore flexible and can be retrofitted at almost any location.

This allows a wide range of scenarios to be mapped, from indoor navigation, theft protection, inventory management, tracking solutions and much more. On the one hand, the beacons are inexpensive to purchase, can be installed with minimal effort and consume hardly any power thanks to the BLE standard (Bluetooth Low Energy). In addition, beacons normally do not affect already existing infrastructures such as WLAN, DECT or mobile radio. Even medical devices remain undisturbed.

*Snom M9B Beacon Gateways can only be operated with Snom M900 bases.
**Third party software is required in many applications.

Overview of Series

> Snom M9T

Bluetooth LE support
Automatic stand-by to save power
Built-in motion sensor

> Snom A190

HD audio
Compatible to DECT M-series
Call control

> Snom M25

TFT color LCD
Stand-by times: Approx. 75 hours
Talk time: Approx. 7 hours

> Snom M30

Wireless software updates (OTA)
Long standby time
Belt clip

> Snom M400

Up to 20 handsets
Up to 10 simultaneous calls
Wireless software updates for handsets (OTA)

> Snom M5

Compatible with multi-cell and single-cell base operation
Extended range without network connection
Up to 5 simultaneous calls

> Snom M65

TFT color display
Wireless software update (OTA)
Standby times up to 250 hours

> Snom M70

Bluetooth for headsets
Rugged design
Alarm function

> Snom M80

Bluetooth for headsets
Various alarm functions
Rugged design

> Snom M85

Bluetooth for headsets
Many alarm functions
Rugged design

> Snom M90

Antibacterial housing (JIS-Z2801)
Alarm button
IP65 protected handset
Vibration alarm

> Snom M900

Multicell with up to 1,000 bases in a cluster
Up to 4,000 handsets in a cluster
Wireless software updates for handsets
TLS encryption

> Snom M900 - Outdoor

Multi-cell with up to 1,000 bases in a cluster
Up to 4,000 handsets in a cluster
Wireless software updates for handsets (OTA)
TLS encryption

> Snom M9T

Bluetooth LE support
Automatic stand-by to save power
Built-in motion sensor

Technical features

Bluetooth

This device has Bluetooth headset support.

DECT

This device communicates using the radio standard for telecommunications called DECT (Digital Enhanced Cordless Telecommunications).

OTA Updates

This device is able to receive updates via radio, i.e. OTA (over-the-air). As a rule, the DECT handsets must be in their charging cradle for this.

Practical example

"Real-time localisation and alarm systems (Snom Beacon Solution)".

With the Snom M9B Beacon Gateways we offer an ideal solution for professional "location and asset tracking" as well as alarm systems into a into a Snom DECT multi-cell system of the M-series. The Snom M9B Beacon Gateway works as a Bluetooth satellite, which connects via a DECT data connection to a Snom M900 DECT base station. The 4 antennas integrated in the Snom M9B enable thanks to beamforming in the range of 1-1.5 metres, in order to protect objects from theft, for example. For the individual requirements of tracking (alarm, monitoring, signalling), we work with specialised specialised third-party providers.

Our team of experts will be pleased to advise you and accompany your project until completion!
