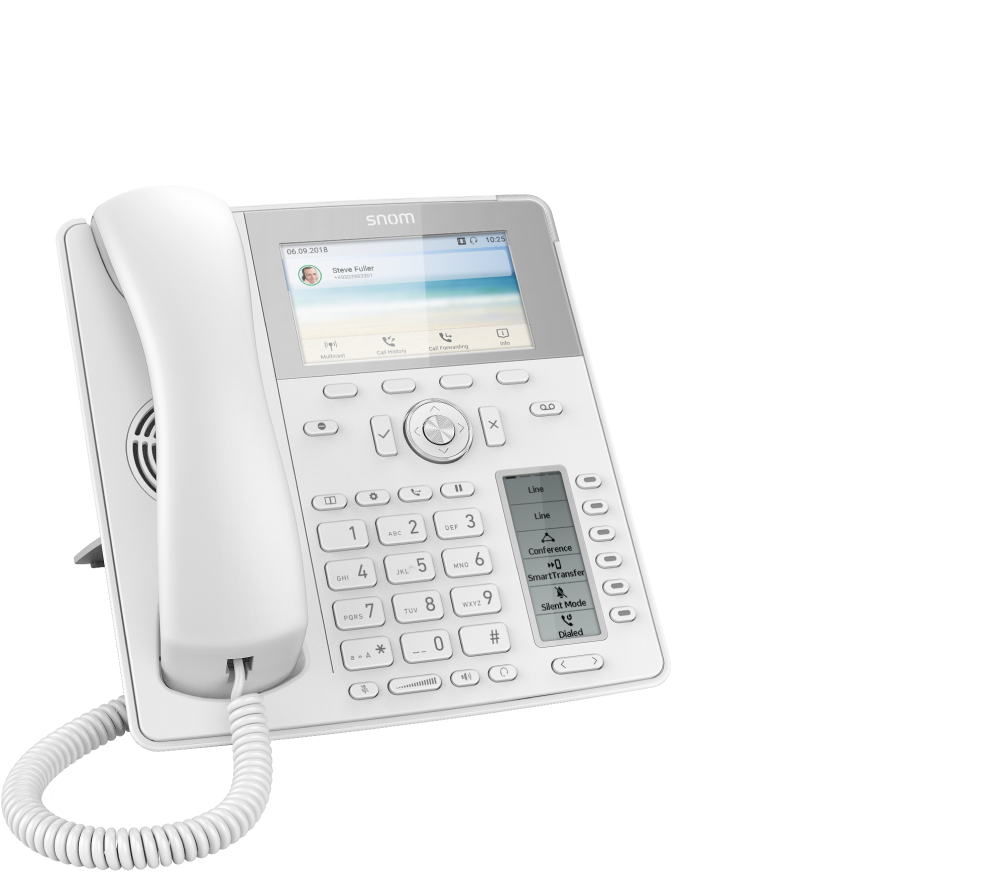

Snom D785 (W)

Desk phone

Key features

Colour: White
(also available in black)
High-resolution 4.3 Zoll TFT colour display
24 freely programmable function keys / BLF keys (6 physical) in the second display
Integrated Bluetooth (except D785N)
USB headset compatible

Technical details >

Documentation >

Purchase options >

The ideal companion for everyday work

The Snom D785 is part of Snom's latest and most technically advanced phone series. With the elegant design available in black and white, the large high-resolution colour display, as well as the practical second display for a dynamic configuration of the 24 function keys (6 physical), this telephone offers all the functions for every working day.

Thanks to the integrated digital signal processor (DSP), the Snom D785/D785N offers the HD audio quality common to all Snom phones.

One of the most appealing features of the Snom D785/D785N is the ability to customise the entire user interface.
This means that you can not only change the background as well as all icons and colours according to your wishes, you can even individualise menus and of course assign the function keys with speed dials or BLF according to your workflow at any time.

Two installation angles possible:
46° and 28

Thanks to the two mounting rails integrated in each foot of the D7 series, you can obtain a lying (28°) or standing (46°) position of your Snom phone by simply turning the foot.

High-resolution 4.3" TFT colour display

The flagship of the D7 series comes with an extra-large high-resolution 4.3" TFT colour display.

Second display

The D785 / D785N comes with a second (b/w) display which is used to label the speed dial / BLF LED keys themselves and digitally.

Overview of Series

> Snom D785 / D785N

Colour: Black
High-resolution 4.3 Zoll TFT colour display

> Snom D735

Colour: Black
Sensor-based user interface
High-resolution 2.7 Zoll TFT colour display (6.9cm)

> Snom D735 (W)

Colour: White
Sensor-based user interface
High-resolution 2.7 Zoll TFT colour display (6.9cm)

> Snom D717

Colour: Black
High-resolution TFT colour display
3 freely programmable function keys (BLF)

> Snom D717 (W)

Colour: White
High-resolution TFT colour display
3 freely programmable function keys (BLF)

> Snom D715

3.2 inch high resolution b/w display
USB port
Available in black or white

> Snom D715 (W)

Colour: White
3.2 inch high resolution b/w display
USB port

> Snom D713

High-resolution TFT colour display
4 freely programmable function keys
Hands-free operation with HD audio

> Snom D7

Colour: Black
18 freely programmable, coloured LED buttons
Plug-and-play

> Snom D7 (W)

Colour: White
18 freely programmable, coloured LED buttons
Plug-and-play

> Snom D7C

6.8 Zoll (17.2 cm) TFT colour screen
Expansion module with 48 (16) programmable buttons
Plug-and-play

Technical features

Bluetooth

This device has Bluetooth headset support.

Expansion module connectable

To have additional speed dial or BLF keys available on your desk phone, this device can be supplemented with expansion modules.

Gigabit Ethernet

This device has a Gigabit network input and an output (switch) for connecting a computer.

HD audio

This device supports with its hardware and the supported codecs, the highest audio quality.

Headset connectable

This device has a port and possible software support that allows a headset to be connected.

IPv6 & IPv4

This device supports both Internet Protocol version 4 (IPv4) and IPv6.

OpenVPN

This desk phone can be upgraded to an OpenVPN client with an additional firmware upgrade to connect it to an OpenVPN server.

Power over Ethernet (PoE)

This device can receive its power from a connected network cable, provided that the network switch used supports this and has enough power to supply all connected devices.

Plug & Play

This device comes with Plug & Play. This means you can use accessories connected via USB without rebooting the phone.

Self-labeling keys in additional display

Unlike in the past, where the freely programmable function keys were labeled by means of paper, this device has labeling in a display.

Security (TLS & SRTP)

This device supports all common security protocols, such as TLS, SIPS, SRTP, etc.

Telephone directory

This device has an integrated phone book.

USB port

This device has at least one USB port.

Compatible Headsets

Corded

The corded headsets from Snom are equipped with extra long cables for maximum freedom and offer with their ergonomic design for fatigue-free wearing comfort in daily use.

> Snom A100D

Binaural wideband headset
300° flexible boom
Passive noise cancelling microphone
Super light: 79g (without cable)

> Snom A100M

Monaural wideband headset
300° flexible boom
Passive noise cancelling microphone

> Snom A330D

Full band audio
Remote control with LED display and 5 buttons
3.5mm jack & USB plug

> Snom A330M

Full band audio
Remote control with LED display and 5 buttons
3.5mm jack & USB plug

Cordless

Snom's cordless headsets use DECT wireless technology, which allows you to work comfortably and with both hands free in and around the workplace.

> Snom A150

Wireless DECT headset
High range

> Snom A170

Wireless DECT headset
Connection to Snom phone or PC possible (USB)
Passive noise cancelling microphone
Battery replaceable during a call

Practical example

"Real-time localisation and alarm systems (Snom Beacon Solution)".

With the Snom M9B Beacon Gateways we offer an ideal solution for professional "location and asset tracking" as well as alarm systems into a into a Snom DECT multi-cell system of the M-series. The Snom M9B Beacon Gateway works as a Bluetooth satellite, which connects via a DECT data connection to a Snom M900 DECT base station. The 4 antennas integrated in the Snom M9B enable thanks to beamforming in the range of 1-1.5 metres, in order to protect objects from theft, for example. protect objects from theft. For the individual requirements of tracking (alarm, monitoring, signalling), we work with specialised specialised third-party providers.

Our team of experts will be pleased to advise you and accompany your project until completion!

Learn more about beacons

keyboard_arrow_right

Accessories

"How can I turn my phone into a conference device?"

Snom offers with the Snom A230 - DECT Dongle combined with the Snom C52-SP an inexpensive and flexible way to upgrade any Snom desk phone with at least one USB port to a smart conference solution.

Learn more

keyboard_arrow_right

The matching accessories

> Snom A210

Adds a WiFi option to your desk phone
Wireless telephony anywhere
Encryption: WPA-PSK/WPA2-PSK; WPA/WPA2; WEP

> Snom A230

Adds DECT option to Snom phones
Allows connection Snom A150 and Snom C52-SP

> Snom C52-SP

Flexible expansion of the Snom C520-WiMi
High range thanks to DECT radio technology
Full duplex hands-free

Help with questions about products, availability and prices

Contact person

Snom HQ Berlin

+49 30 39833-0

sales@snom.com

Further contact persons

keyboard_arrow_right

Where can you find a Snom partner near you?

You want to buy our products and need advice? Then you have come to the right place.

Find Partner

keyboard_arrow_right

Which distributor offers the products?

Snom is available all over the world. If you are looking for a wholesaler, you can find here all our partner distributors sorted by country.

Customise desk phones

Make it your phone

Snom desk phones can be highly customised. In addition to being able to customise the phone's user interface (UI), most models can also be physically customised.

UI personalisation - software customisation
For all Snom desk phones with a colour display, screen backgrounds, title and selection bars, and menu structures can be customised in terms of content and colour. In addition, all devices can use individual ringtones.
Corporate branding - changing the hardware
Some phones of the Snom D7xx series can be printed with your own logo. In addition, you can receive almost all devices with individual key labelling and also order any plastic part (housing, handset, telephone cable) in an individual colour.

Learn more

keyboard_arrow_right

Find the right telephone system (PBX).

List of our compatible PBX

If you would like to know whether your desired phone is compatible with the PBX you are using, you can view the on our PBX partner overview page in the Service Hub.

To the comparison list

keyboard_arrow_right

Information on choosing a PBX

Do you need information when choosing a suitable PBX for your desired telephone? We have compiled some tips for you in the guide on what you should look out for.

To the guide

keyboard_arrow_right

Technical data

Downloads

Expand all add

Firmware

add remove

The latest firmware for your Snom device can be found at the link below. When updating, please follow all safety instructions and take into account which firmware version is currently permitted by the PBX you are using.

You may not be able to update your Snom device manually, but only via the web interface of your PBX.

To the firmware update center
